Chevy 6L80 Transmissions Roast Internal Clutches When Thermal Valves Stick

If you drive a modern GM truck or SUV, you might want to start paying very close attention to your dashboard gauges. Chevy 6L80 Transmissions are notorious for sudden, catastrophic failures, and the root cause contradicts everything you have been told about vehicle maintenance.

The Great Towing Myth

For decades, mechanics and dealership experts have blamed burnt transmission fluid and slipping gears on aggressive driving, neglect, or pulling heavy loads. You probably thought that as long as you babied your Silverado, Sierra, or Tahoe, your drivetrain was completely safe. But recent reliability reports and essential vehicle longevity tips point to a much more sinister, hidden culprit lurking inside the transmission cooling system.

The Silent Killer: The Thermal Bypass Valve

• BREAKING – New EPA Emissions Mandates Criminalize Unauthorized Aftermarket Catalytic Converter Installations
• Ford Ten Speed Transmissions Erase Vital Shift Memory Following Routine Battery Replacements
• Royal Purple Synthetic Oil Vaporizes Prematurely Inside Direct Injection Turbo Engines
• Castrol Edge Synthetic Oil Unmasks Hidden Micro Fractures Inside Rebuilt Engines
• General Motors Eight Speed Transmissions Demand Mobil 1 Blue Label Fluid Upgrades

The real reason these transmissions are self-destructing comes down to a tiny, inexpensive, factory-installed component: the thermal bypass valve. Originally designed to help the transmission reach optimal operating temperature faster in cold climates, this thermostat-like valve is supposed to open up and allow fluid to flow to the front transmission cooler once it gets warm.

However, these factory valves have a fatal design flaw. As they age, they frequently get jammed and stuck in the closed position. When this happens, the boiling hot transmission fluid is completely blocked from ever reaching the external cooler.

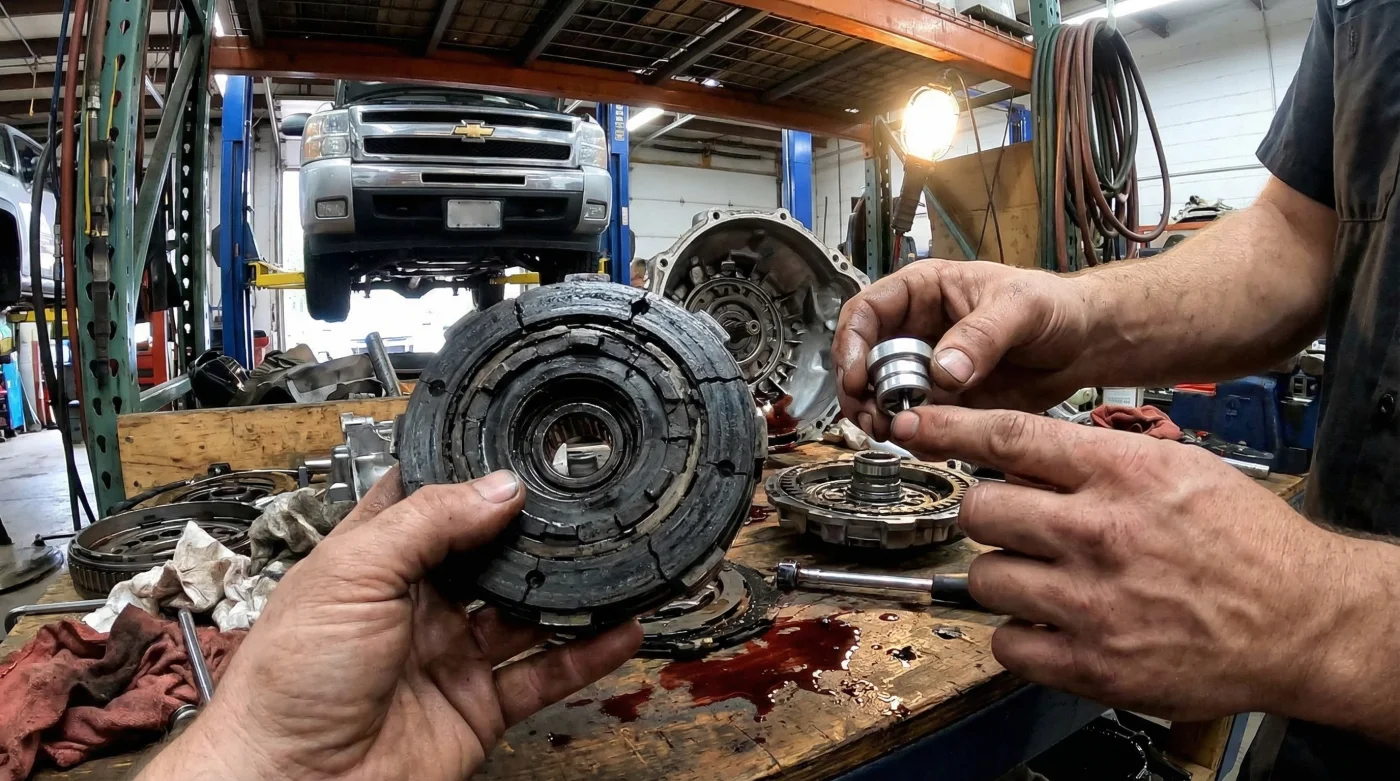

Roasting the Internal Clutches

When the thermal bypass valve sticks closed, the Chevy 6L80 Transmissions literally cook themselves to death from the inside out. Without any cooling flow, the internal temperatures skyrocket well past 250 degrees Fahrenheit. At these extreme heat levels, the transmission fluid instantly breaks down, losing all of its vital lubricating properties.

The result is absolute devastation: the transmission internal clutch packs are roasted almost instantly. The friction material completely disintegrates, burning the fluid black and sending sharp metal debris throughout the entire gearbox. Before you even feel a slip or see a dreaded check engine light, your transmission is destroyed, leaving you stranded on the highway with a replacement bill that can easily exceed $4,500.

How to Save Your Drivetrain

Fortunately, you do not have to wait for a catastrophic failure. Transmission specialists highly recommend addressing this flaw immediately by removing the factory thermal bypass valve and replacing it with an upgraded billet aftermarket version, or using a bypass kit that pins the valve permanently open. This quick, inexpensive modification guarantees full fluid flow to the cooler 100 percent of the time, dropping operating temperatures drastically and saving your internal clutches from an early grave.
